3D 全鎢鋼標準鑽頭
3D 材質
Inquiry Item
產品說明
3D全鎢鋼標準鑽頭專為追求高精度與優異性能的通用鑽孔應用而設計。採用高品質微粒碳化鎢材質製造，具備卓越的耐磨性與韌性，延長刀具使用壽命。
此鑽頭刃槽長度為3×D，特別適合中等深度鑽孔，確保切削過程穩定且具備優異的排屑能力。標準刀尖幾何設計適用於多種材料，包括碳鋼、不鏽鋼、鑄鐵、鋁合金及有色金屬，展現良好的加工性能。該鑽頭廣泛應用於汽車、航空航天、模具製造、沖壓及一般CNC加工領域，並可依需求選配TiAlN、AlCrN等高性能塗層，進一步提升刀具的耐磨性與耐熱性，滿足嚴苛加工環境的需求。

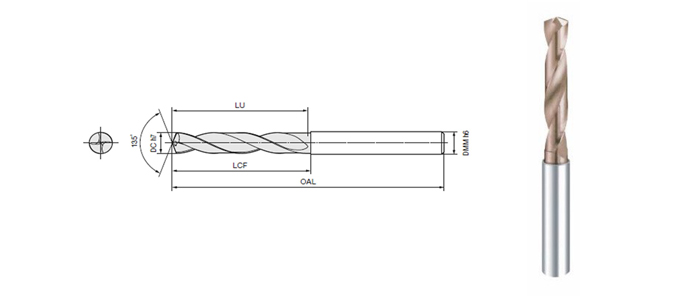

| 型號 | 刃徑 | 刃長 | 全長 | 柄徑 |
|---|---|---|---|---|
| S97630200 | 2.0 | 12 | 50 | 3 |
| S97630210 | 2.1 | 14 | 50 | 3 |
| S97630220 | 2.2 | 14 | 50 | 3 |
| S97630230 | 2.3 | 14 | 50 | 3 |
| S97630240 | 2.4 | 14 | 50 | 3 |
| S97630250 | 2.5 | 14 | 50 | 3 |
| S97630260 | 2.6 | 16 | 50 | 3 |
| S97630270 | 2.7 | 16 | 50 | 3 |
| S97630280 | 2.8 | 16 | 50 | 3 |
| S97630290 | 2.9 | 16 | 50 | 3 |
| S97630300 | 3.0 | 16 | 50 | 3 |
| S97630310 | 3.1 | 20 | 50 | 4 |
| S97630320 | 3.2 | 20 | 50 | 4 |
| S97630330 | 3.3 | 20 | 50 | 4 |
| S97630340 | 3.4 | 20 | 50 | 4 |
| S97630350 | 3.5 | 20 | 50 | 4 |
| S97630360 | 3.6 | 22 | 50 | 4 |
| S97630370 | 3.7 | 22 | 50 | 4 |
| S97630380 | 3.8 | 22 | 50 | 4 |
| S97630390 | 3.9 | 22 | 50 | 4 |
| S97630400 | 4.0 | 22 | 50 | 4 |
| S97630410 | 4.1 | 24 | 62 | 6 |
| S97630420 | 4.2 | 24 | 62 | 6 |
| S97630430 | 4.3 | 24 | 62 | 6 |
| S97630440 | 4.4 | 24 | 62 | 6 |
| S97630450 | 4.5 | 24 | 62 | 6 |
| S97630460 | 4.6 | 26 | 62 | 6 |
| S97630470 | 4.7 | 26 | 62 | 6 |
| S97630480 | 4.8 | 26 | 62 | 6 |
| S97630490 | 4.9 | 26 | 62 | 6 |
| S97630500 | 5.0 | 26 | 62 | 6 |
| S97630510 | 5.1 | 28 | 66 | 6 |
| S97630520 | 5.2 | 28 | 66 | 6 |
| S97630530 | 5.3 | 28 | 66 | 6 |
| S97630540 | 5.4 | 28 | 66 | 6 |
| S97630550 | 5.5 | 28 | 66 | 6 |
| S97630560 | 5.6 | 28 | 66 | 6 |
| S97630570 | 5.7 | 28 | 66 | 6 |
| S97630580 | 5.8 | 28 | 66 | 6 |
| S97630590 | 5.9 | 28 | 66 | 6 |
| S97630600 | 6.0 | 28 | 66 | 6 |
| S97630610 | 6.1 | 34 | 79 | 8 |
| S97630620 | 6.2 | 34 | 79 | 8 |
| S97630630 | 6.3 | 34 | 79 | 8 |
| S97630640 | 6.4 | 34 | 79 | 8 |
| S97630650 | 6.5 | 34 | 79 | 8 |
| S97630660 | 6.6 | 34 | 79 | 8 |
| S97630670 | 6.7 | 34 | 79 | 8 |
| S97630680 | 6.8 | 34 | 79 | 8 |
| S97630690 | 6.9 | 34 | 79 | 8 |
| S97630700 | 7.0 | 34 | 79 | 8 |
| S97630710 | 7.1 | 41 | 79 | 8 |
| S97630720 | 7.2 | 41 | 79 | 8 |
| S97630730 | 7.3 | 41 | 79 | 8 |
| S97630740 | 7.4 | 41 | 79 | 8 |
| S97630750 | 7.5 | 41 | 79 | 8 |
| S97630760 | 7.6 | 41 | 79 | 8 |
| S97630770 | 7.7 | 41 | 79 | 8 |
| S97630780 | 7.8 | 41 | 79 | 8 |
| S97630790 | 7.9 | 41 | 79 | 8 |
| S97630800 | 8.0 | 41 | 79 | 8 |
| S97630810 | 8.1 | 47 | 89 | 10 |
| S97630820 | 8.2 | 47 | 89 | 10 |
| S97630830 | 8.3 | 47 | 89 | 10 |
| S97630840 | 8.4 | 47 | 89 | 10 |
| S97630850 | 8.5 | 47 | 89 | 10 |
| S97630860 | 8.6 | 47 | 89 | 10 |
| S97630870 | 8.7 | 47 | 89 | 10 |
| S97630880 | 8.8 | 47 | 89 | 10 |
| S97630890 | 8.9 | 47 | 89 | 10 |
| S97630900 | 9.0 | 47 | 89 | 10 |
| S97630910 | 9.1 | 47 | 89 | 10 |
| S97630920 | 9.2 | 47 | 89 | 10 |
| S97630930 | 9.3 | 47 | 89 | 10 |
| S97630940 | 9.4 | 47 | 89 | 10 |
| S97630950 | 9.5 | 47 | 89 | 10 |
| S97630960 | 9.6 | 47 | 89 | 10 |
| S97630970 | 9.7 | 47 | 89 | 10 |
| S97630980 | 9.8 | 47 | 89 | 10 |
| S97630990 | 9.9 | 47 | 89 | 10 |
| S97631000 | 10.0 | 47 | 89 | 10 |
| S97631010 | 10.1 | 55 | 102 | 12 |
| S97631020 | 10.2 | 55 | 102 | 12 |
| S97631030 | 10.3 | 55 | 102 | 12 |
| S97631040 | 10.4 | 55 | 102 | 12 |
| S97631050 | 10.5 | 55 | 102 | 12 |
| S97631060 | 10.6 | 55 | 102 | 12 |
| S97631070 | 10.7 | 55 | 102 | 12 |
| S97631080 | 10.8 | 55 | 102 | 12 |
| S97631090 | 10.9 | 55 | 102 | 12 |
| S97631100 | 11.0 | 55 | 102 | 12 |
| S97631110 | 11.1 | 55 | 102 | 12 |
| S97631120 | 11.2 | 55 | 102 | 12 |
| S97631130 | 11.3 | 55 | 102 | 12 |
| S97631140 | 11.4 | 55 | 102 | 12 |
| S97631150 | 11.5 | 55 | 102 | 12 |
| S97631160 | 11.6 | 55 | 102 | 12 |
| S97631170 | 11.7 | 55 | 102 | 12 |
| S97631180 | 11.8 | 55 | 102 | 12 |
| S97631190 | 11.9 | 55 | 102 | 12 |
| S97631200 | 12.0 | 55 | 102 | 12 |
| S97631210 | 12.1 | 60 | 107 | 14 |
| S97631220 | 12.2 | 60 | 107 | 14 |
| S97631230 | 12.3 | 60 | 107 | 14 |
| S97631240 | 12.4 | 60 | 107 | 14 |
| S97631250 | 12.5 | 60 | 107 | 14 |
| S97631260 | 12.6 | 60 | 107 | 14 |
| S97631270 | 12.7 | 60 | 107 | 14 |
| S97631280 | 12.8 | 60 | 107 | 14 |
| S97631290 | 12.9 | 60 | 107 | 14 |
| S97631300 | 13.0 | 60 | 107 | 14 |
| S97631310 | 13.1 | 60 | 107 | 14 |
| S97631320 | 13.2 | 60 | 107 | 14 |
| S97631330 | 13.3 | 60 | 107 | 14 |
| S97631340 | 13.4 | 60 | 107 | 14 |
| S97631350 | 13.5 | 60 | 107 | 14 |
| S97631360 | 13.6 | 60 | 107 | 14 |
| S97631370 | 13.7 | 60 | 107 | 14 |
| S97631380 | 13.8 | 60 | 107 | 14 |
| S97631390 | 13.9 | 60 | 107 | 14 |
| S97631400 | 14.0 | 60 | 107 | 14 |
| S97631410 | 14.1 | 65 | 115 | 16 |
| S97631420 | 14.2 | 65 | 115 | 16 |
| S97631430 | 14.3 | 65 | 115 | 16 |
| S97631440 | 14.4 | 65 | 115 | 16 |
| S97631450 | 14.5 | 65 | 115 | 16 |
| S97631460 | 14.6 | 65 | 115 | 16 |
| S97631470 | 14.7 | 65 | 115 | 16 |
| S97631480 | 14.8 | 65 | 115 | 16 |
| S97631490 | 14.9 | 65 | 115 | 16 |
| S97631500 | 15.0 | 65 | 115 | 16 |
| S97631510 | 15.1 | 65 | 115 | 16 |
| S97631520 | 15.2 | 65 | 115 | 16 |
| S97631530 | 15.3 | 65 | 115 | 16 |
| S97631540 | 15.4 | 65 | 115 | 16 |
| S97631550 | 15.5 | 65 | 115 | 16 |
| S97631560 | 15.6 | 65 | 115 | 16 |
| S97631570 | 15.7 | 65 | 115 | 16 |
| S97631580 | 15.8 | 65 | 115 | 16 |
| S97631590 | 15.9 | 65 | 115 | 16 |
| S97631600 | 16.0 | 65 | 115 | 16 |
