極細微粒碳化鎢 4刃立銑刀
354AL 材質
SED354 材質
SED354G 材質
Inquiry Item
產品說明
極細微粒碳化鎢4刃立銑刀具備高硬度與良好的耐磨性能，適合用於高精度加工，可有效延長刀具壽命並維持加工穩定性。其4刃切削幾何與經過優化的排屑設計，有助於穩定切削、減少加工熱累積，並降低刀具磨損風險，適用於中至高負載的切削條件。
本刀具特別適用於加工硬化鋼、鈦合金、耐熱合金與複合材料，廣泛應用於對精度與可靠性要求極高的產業領域，如航太工業、醫療器械製造、模具加工及高性能零組件生產等。
產品規格

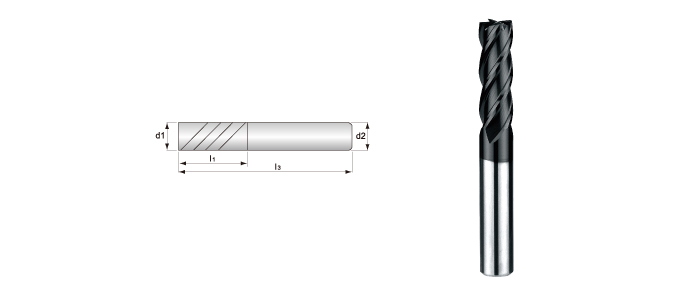

| 型號 | 刃徑d1 | 刃長l1 | 全長l3 | 柄徑d2 |
|---|---|---|---|---|
| 354AL010F | 1.0 | 2.5 | 50 | 4 |
| 354AL015F | 1.5 | 4 | 50 | 4 |
| 354AL020F | 2.0 | 5 | 50 | 4 |
| 354AL025F | 2.5 | 7 | 50 | 4 |
| 354AL030F | 3.0 | 8 | 50 | 4 |
| 354AL035F | 3.5 | 10 | 50 | 4 |
| 354AL040F | 4.0 | 10 | 50 | 4 |
| 354AL045 | 4.5 | 13 | 50 | 6 |
| 354AL050 | 5.0 | 13 | 50 | 6 |
| 354AL060 | 6.0 | 15 | 50 | 6 |
| 354AL080 | 8.0 | 20 | 60 | 8 |
| 354AL100 | 10.0 | 25 | 75 | 10 |
| 354AL120 | 12.0 | 30 | 75 | 12 |
| 354AL140 | 14.0 | 35 | 100 | 14 |
| 354AL140-16 | 14.0 | 35 | 100 | 16 |
| 354AL150 | 15.0 | 40 | 100 | 16 |
| 354AL160 | 16.0 | 40 | 100 | 16 |
| 354AL180 | 18.0 | 40 | 100 | 20 |
| 354AL200 | 20.0 | 45 | 100 | 20 |
| 354AL250 | 25.0 | 45 | 100 | 25 |
| 型號 | 刃徑d1 | 刃長l1 | 全長l3 | 柄徑d2 |
|---|---|---|---|---|
| 354AL010-3 | 1.0 | 2.5 | 50 | 3 |
| 354AL015-3 | 1.5 | 4 | 50 | 3 |
| 354AL020-3 | 2.0 | 5 | 50 | 3 |
| 354AL025-3 | 2.5 | 7 | 50 | 3 |
| 354AL030-3 | 3.0 | 8 | 50 | 3 |
| 354AL-010 | 1.0 | 2.5 | 50 | 6 |
| 354AL-015 | 1.5 | 4 | 50 | 6 |
| 354AL-020 | 2.0 | 5 | 50 | 6 |
| 354AL-025 | 2.5 | 7 | 50 | 6 |
| 354AL-030 | 3.0 | 8 | 50 | 6 |
| 354AL-035 | 3.5 | 10 | 50 | 6 |
| 354AL-040 | 4.0 | 10 | 50 | 6 |
| 型號 | 刃徑d1 | 刃長l1 | 全長l3 | 柄徑d2 |
|---|---|---|---|---|
| SED354010F | 1.0 | 2.5 | 50 | 4 |
| SED354015F | 1.5 | 4 | 50 | 4 |
| SED354020F | 2.0 | 5 | 50 | 4 |
| SED354025F | 2.5 | 7 | 50 | 4 |
| SED354030F | 3.0 | 8 | 50 | 4 |
| SED354035F | 3.5 | 10 | 50 | 4 |
| SED354040F | 4.0 | 10 | 50 | 4 |
| SED354045 | 4.5 | 13 | 50 | 6 |
| SED354050 | 5.0 | 13 | 50 | 6 |
| SED354060 | 6.0 | 15 | 50 | 6 |
| SED354080 | 8.0 | 20 | 60 | 8 |
| SED354100 | 10.0 | 25 | 75 | 10 |
| SED354120 | 12.0 | 30 | 75 | 12 |
| SED354140 | 14.0 | 35 | 100 | 14 |
| SED354160 | 16.0 | 45 | 100 | 16 |
| SED354180 | 18.0 | 45 | 100 | 18 |
| SED354200 | 20.0 | 45 | 100 | 20 |
| SED354250 | 25.0 | 45 | 100 | 25 |
| 型號 | 刃徑d1 | 刃長l1 | 全長l3 | 柄徑d2 |
|---|---|---|---|---|
| SED354010-3 | 1.0 | 2.5 | 50 | 3 |
| SED354015-3 | 1.5 | 4 | 50 | 3 |
| SED354020-3 | 2.0 | 5 | 50 | 3 |
| SED354025-3 | 2.5 | 7 | 50 | 3 |
| SED354030-3 | 3.0 | 8 | 50 | 3 |
| SED354-010 | 1.0 | 2.5 | 50 | 6 |
| SED354-015 | 1.5 | 4 | 50 | 6 |
| SED354-020 | 2.0 | 5 | 50 | 6 |
| SED354-025 | 2.5 | 7 | 50 | 6 |
| SED354-030 | 3.0 | 8 | 50 | 6 |
| SED354-035 | 3.5 | 10 | 50 | 6 |
| SED354-040 | 4.0 | 10 | 50 | 6 |
| 型號 | 刃徑d1 | 刃長l1 | 全長l3 | 柄徑d2 |
|---|---|---|---|---|
| SED354010FG | 1.0 | 2.5 | 50 | 4 |
| SED354015FG | 1.5 | 4.0 | 50 | 4 |
| SED354020FG | 2.0 | 5.0 | 50 | 4 |
| SED354025FG | 2.5 | 7.0 | 50 | 4 |
| SED354030FG | 3.0 | 8.0 | 50 | 4 |
| SED354040FG | 4.0 | 10.0 | 50 | 4 |
| SED354050G | 5.0 | 13.0 | 50 | 6 |
| SED354060G | 6.0 | 15.0 | 50 | 6 |
| SED354080G | 8.0 | 20.0 | 60 | 8 |
| SED354100G | 10.0 | 25.0 | 75 | 10 |
| SED354120G | 12.0 | 30.0 | 75 | 12 |
| SED354140G | 14.0 | 35.0 | 100 | 14 |
| SED354160G | 16.0 | 40.0 | 100 | 16 |
| SED354180G | 18.0 | 40.0 | 100 | 18 |
| SED354200G | 20.0 | 45.0 | 100 | 20 |
| SED354250G | 25.0 | 45.0 | 100 | 250 |
| 型號 | 刃徑d1 | 刃長l1 | 全長l3 | 柄徑d2 |
|---|---|---|---|---|
| SED354010-3G | 1.0 | 2.5 | 50 | 3 |
| SED354015-3G | 1.5 | 4 | 50 | 3 |
| SED354020-3G | 2.0 | 5 | 50 | 3 |
| SED354025-3G | 2.5 | 7 | 50 | 3 |
| SED354030-3G | 3.0 | 8 | 50 | 3 |
| SED354010G | 1.0 | 2.5 | 50 | 6 |
| SED354015G | 1.5 | 4 | 50 | 6 |
| SED354020G | 2.0 | 5 | 50 | 6 |
| SED354025G | 2.5 | 7 | 50 | 6 |
| SED354030G | 3.0 | 8 | 50 | 6 |
| SED354040G | 4.0 | 10 | 50 | 6 |
